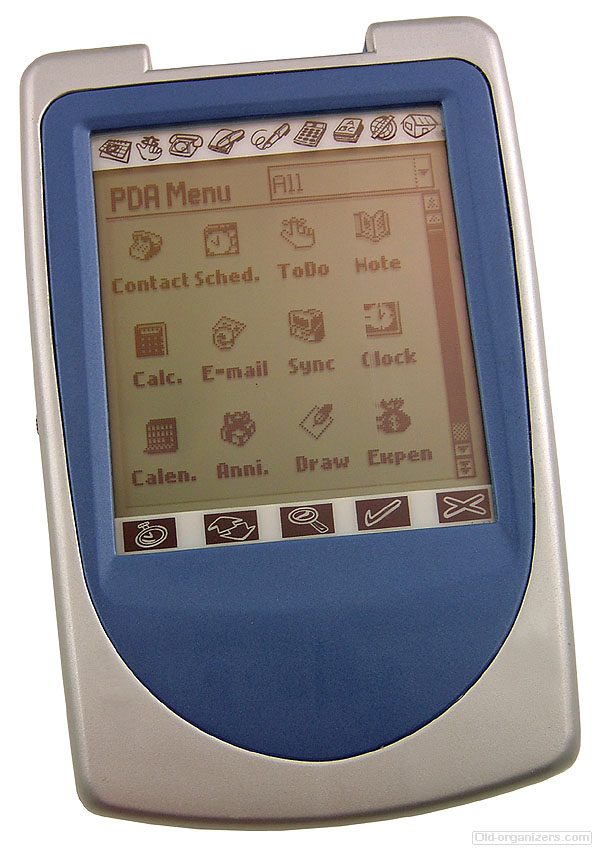

Running the English launcher

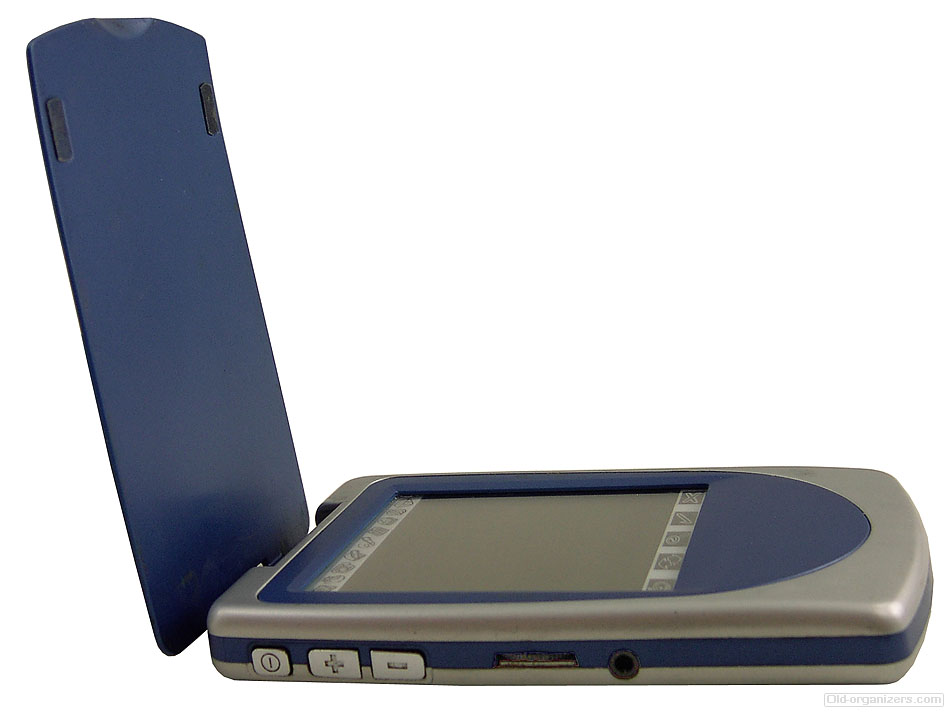

Profile view. Command buttons, contrast knob and PC-Link jack

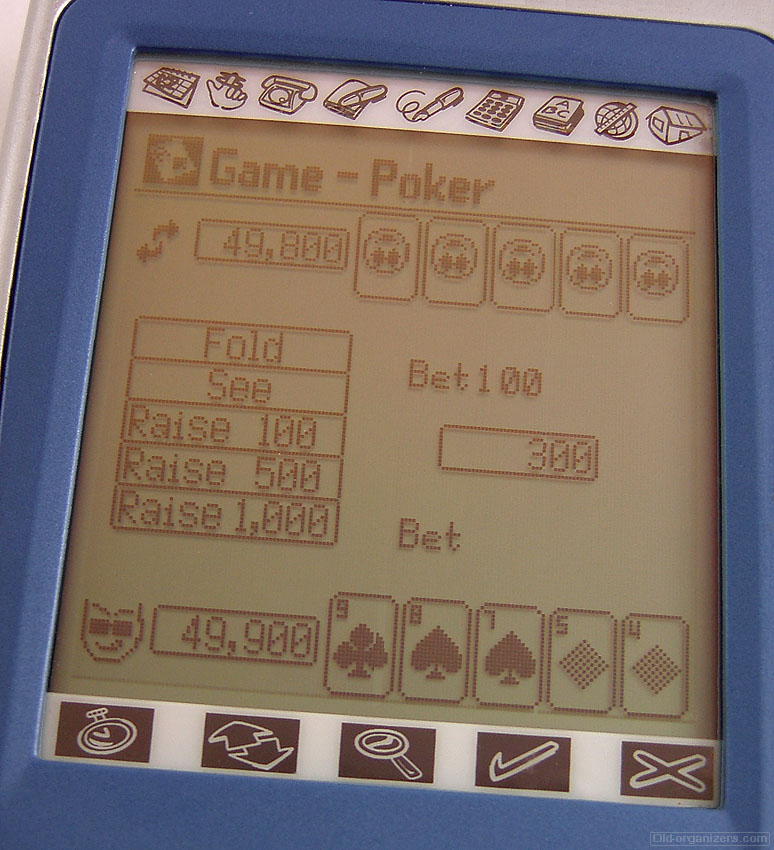

Display close-up, running the Poker game

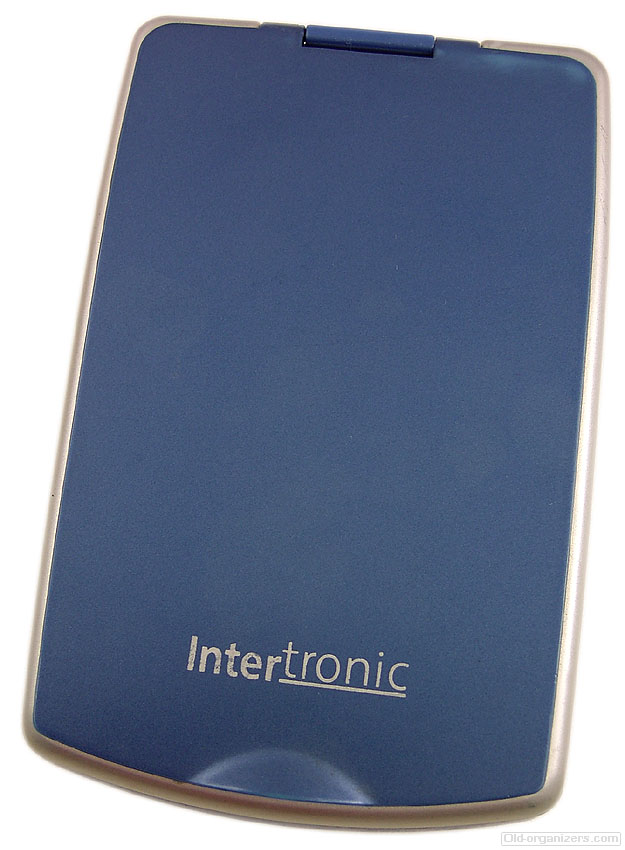

Closed

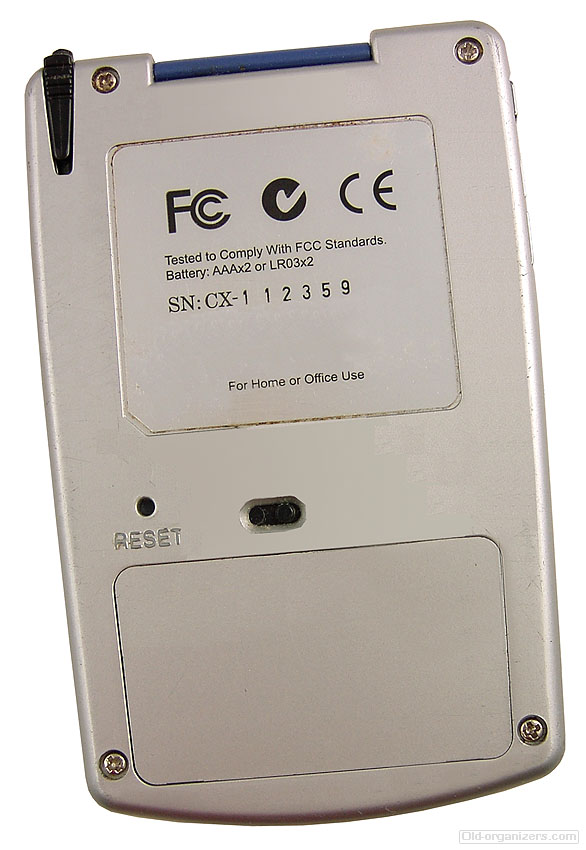

Back side

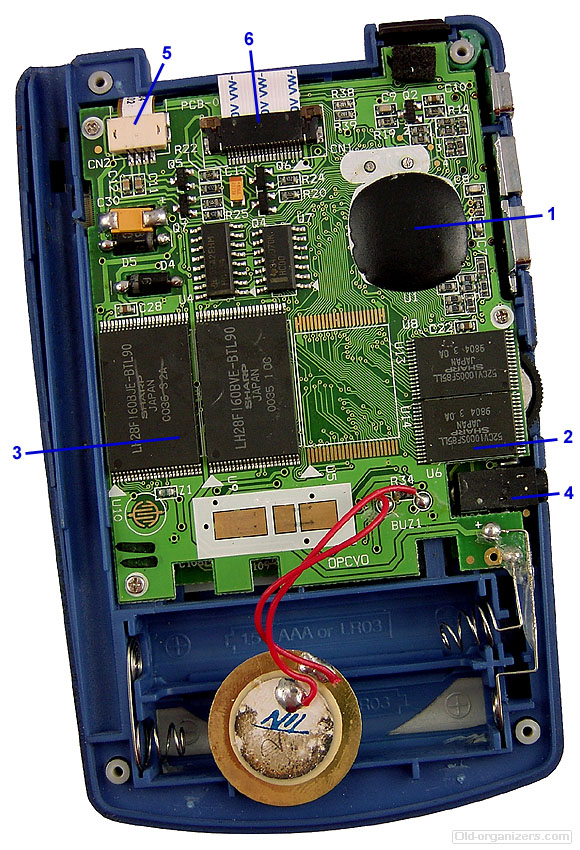

Inside. (1) Main processor, (2) Program ROM chips, (3) 2 x 2 MB Flash memory chips,
(4) PC-Link jack, (5) Sensitive panel connector, (6) LCD display connector.
The buzzer is normally sticked onto the Flash memory chips.
