More Pictures
TCM EX-3601

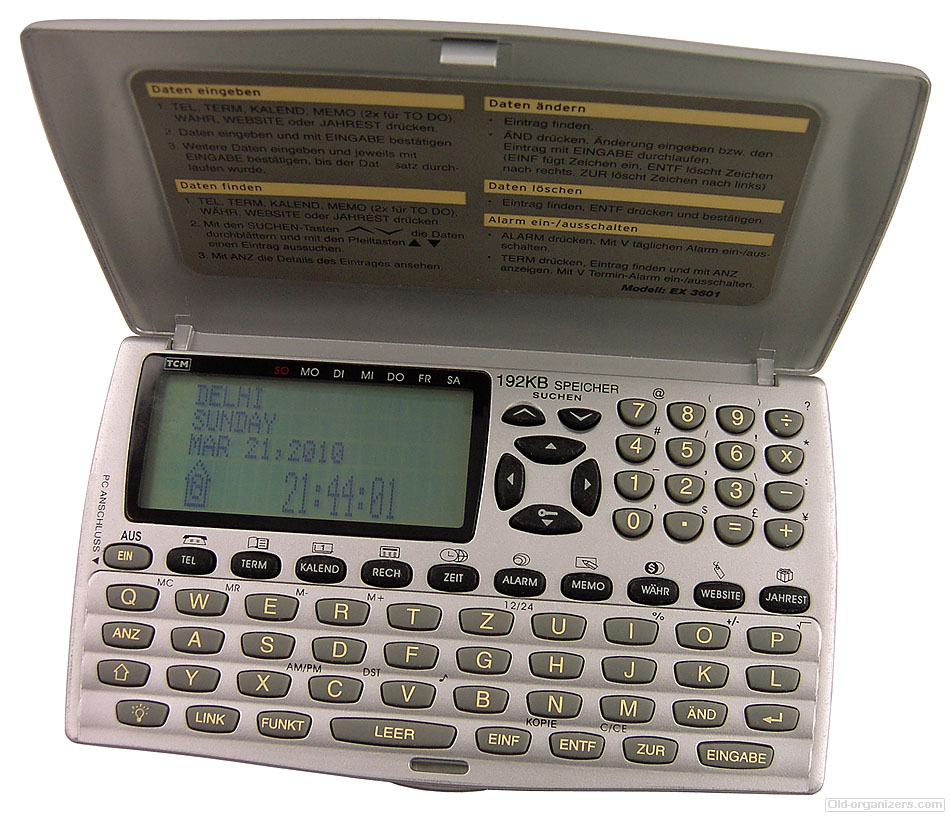

German keyboard and function key labels

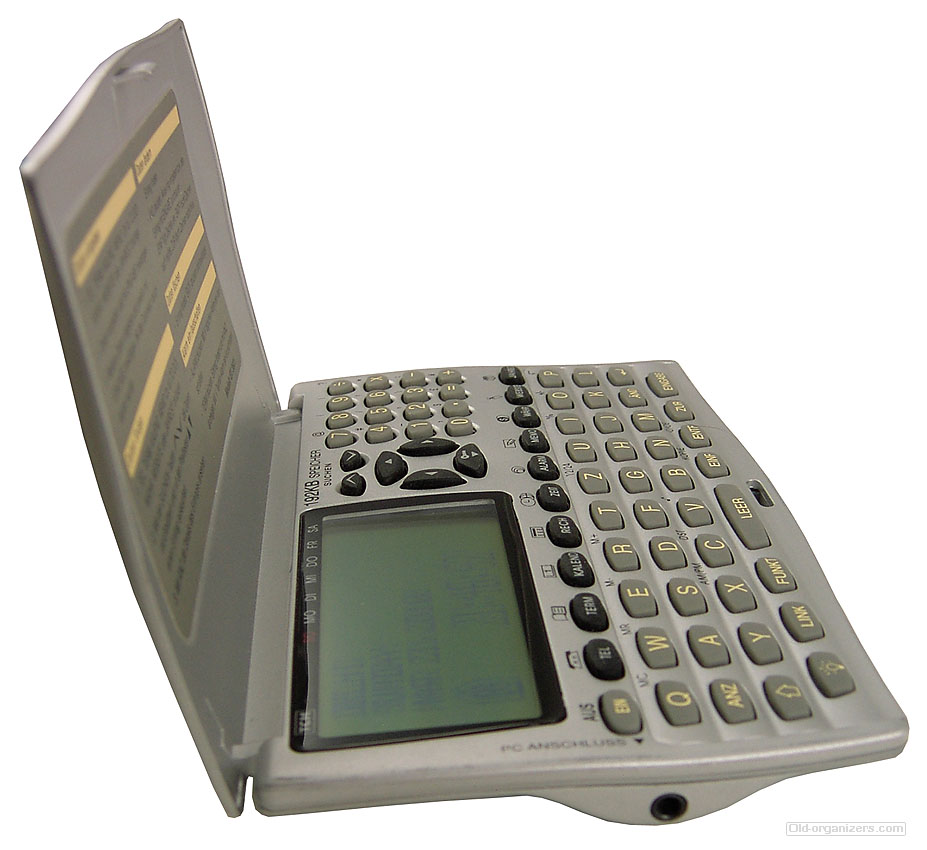

Profile view. PC-Sync jack on the left side

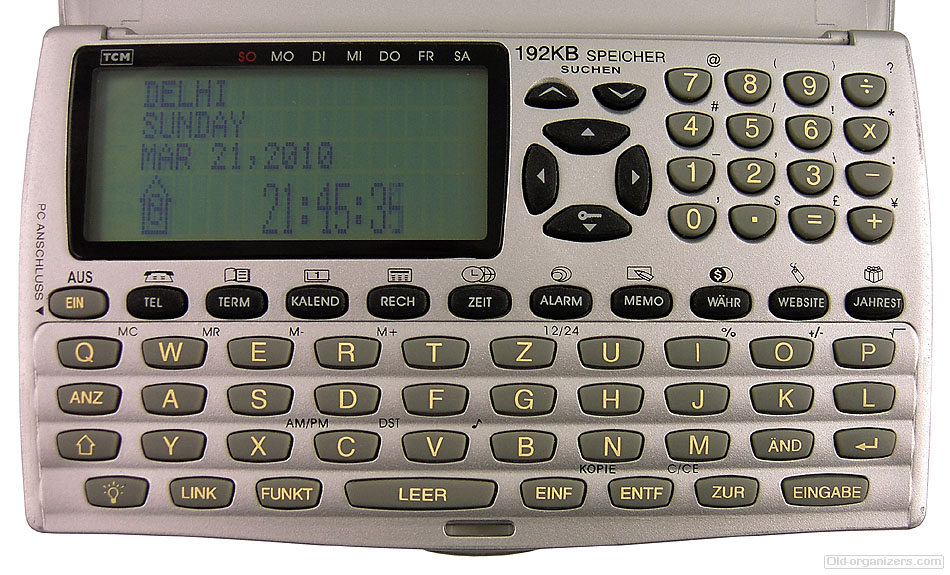

Keyboard close-up

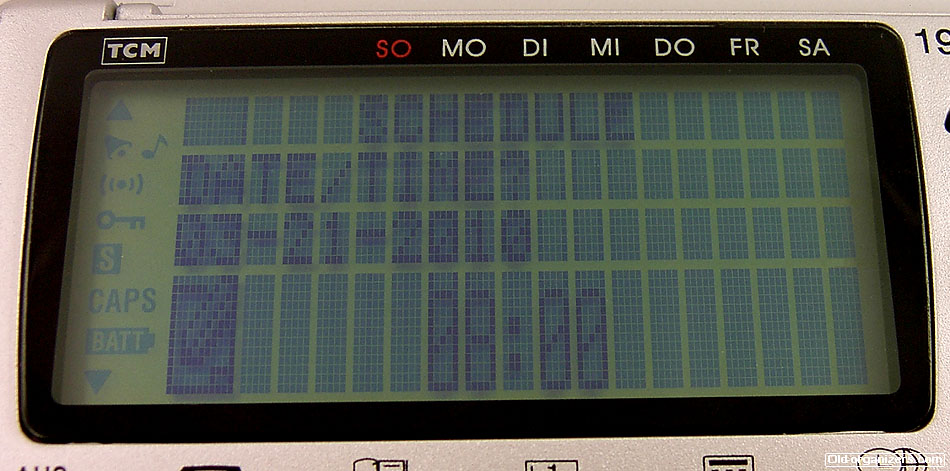

Display close-up. The bottom line can display 1 line of big characters or 2 lines of normal chars.

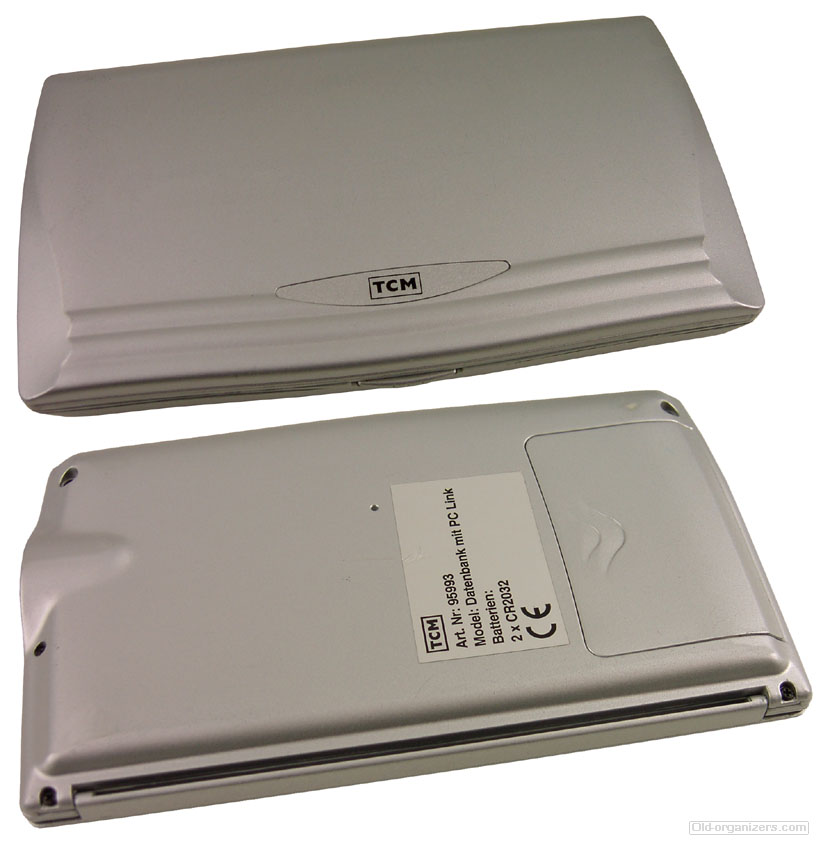

Top and back sides

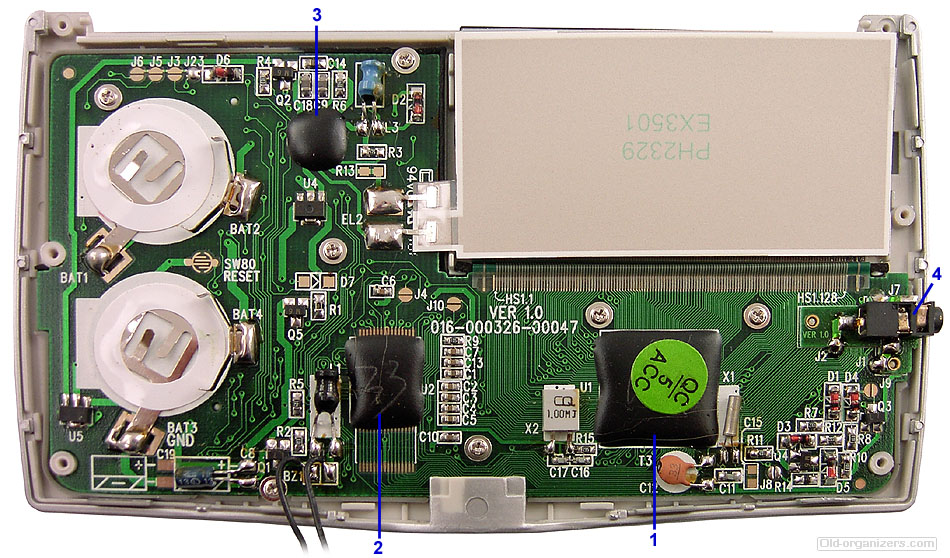

Inside. 1 Main controller chip, 2 192 KB memory chip, 3 Display backlight controller, 4 PC-Sync jack.

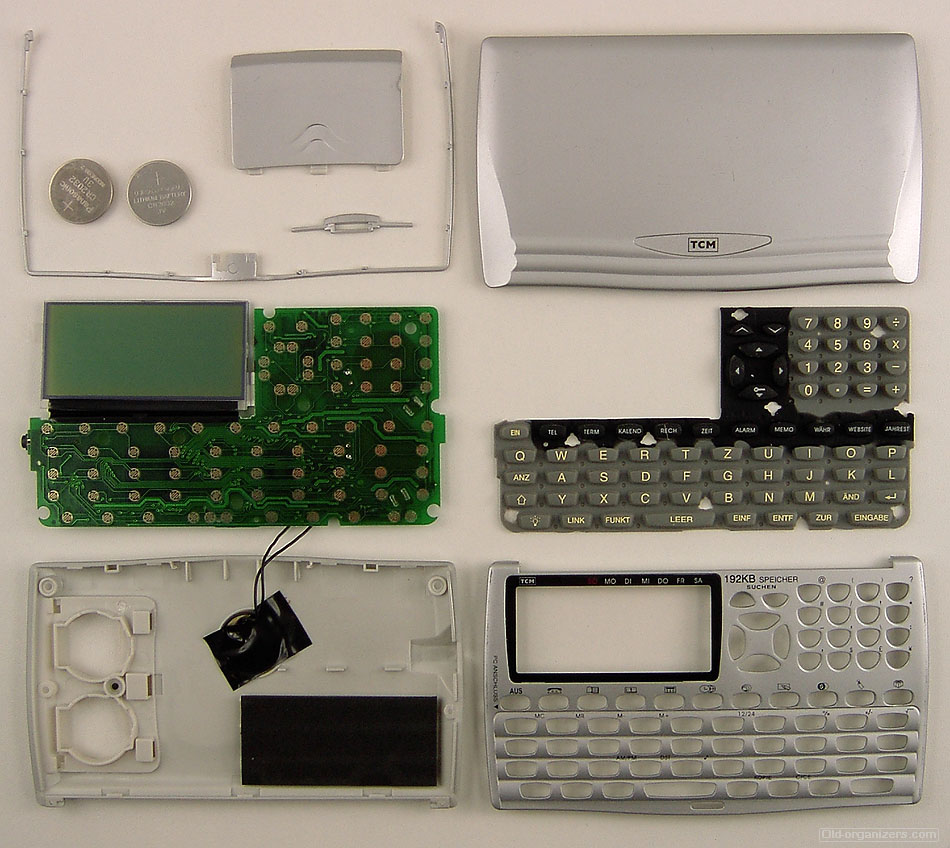

Exploded view

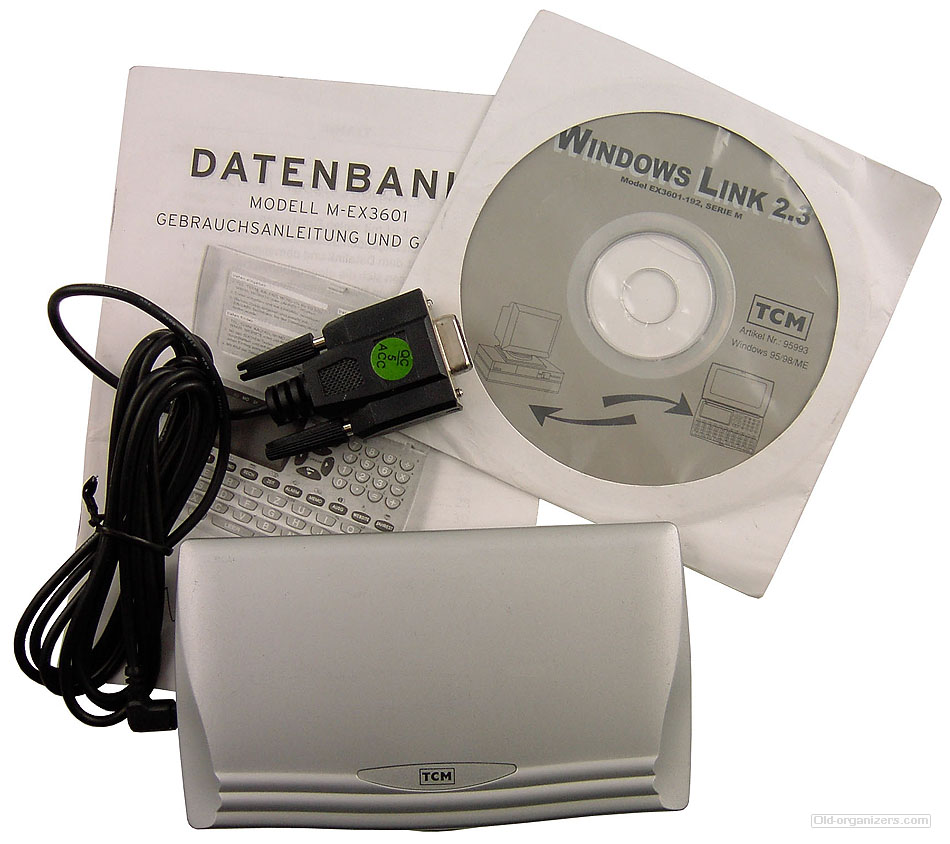

Complete set with PC-Sync cable, German manual and Link software.
