IQ-7000 / OZ-7000

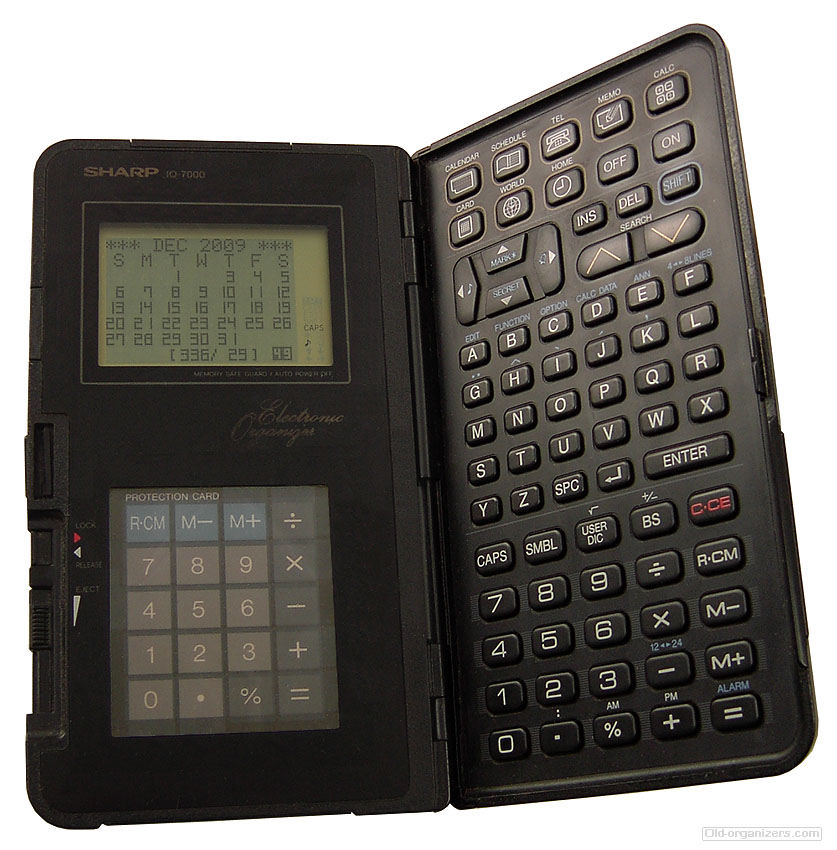

Running the Calendar function

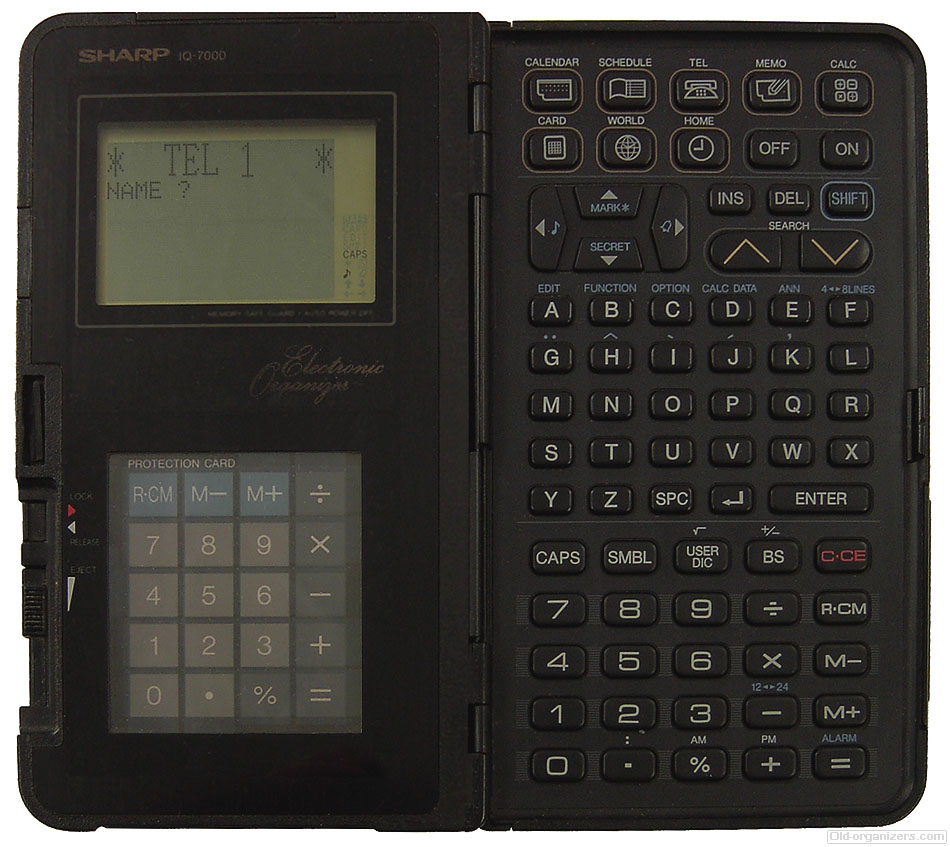

Unfolded, running the Phone book function
The IC card seems not to be the original one.

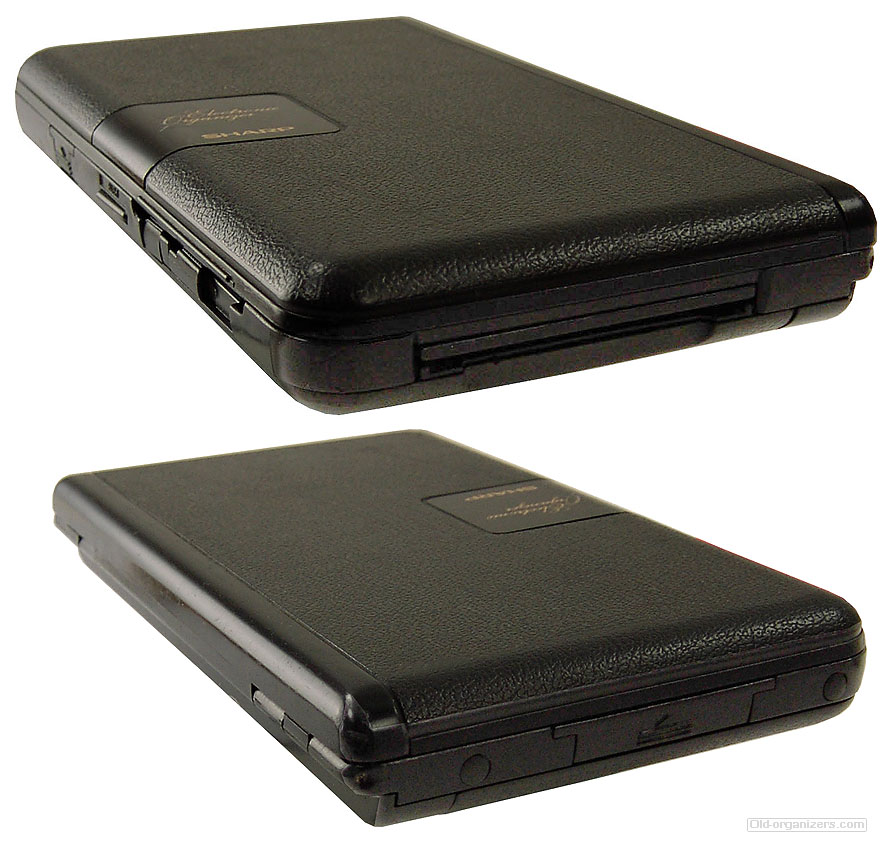

IC card housing (top) and data transfer connector

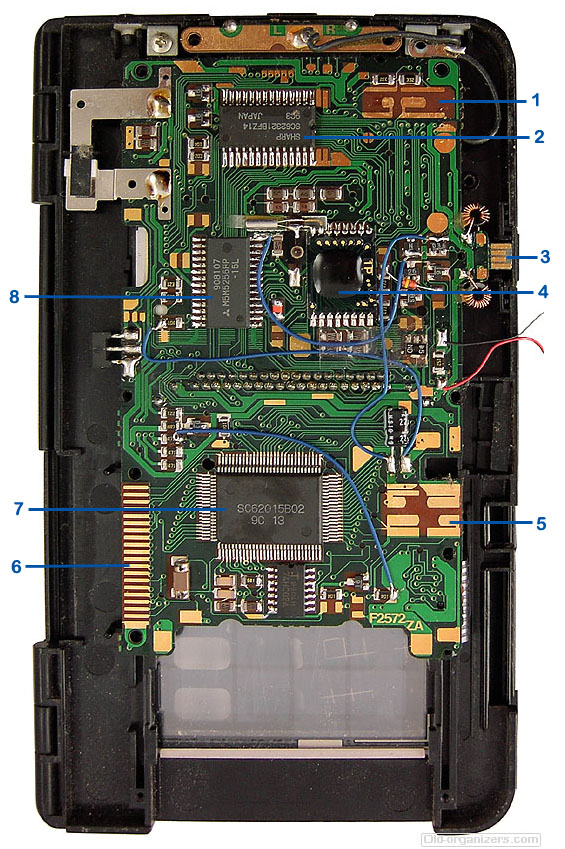

Electronic card.
(1) Backup battery switch, (2) Program ROM, (3) Data transfer/print connector, (4) Data transfer chip, (5) IC card lock switch,
(6) Keyboard connector, (7) Sharp processor/controller, (8) 32 KB RAM chip

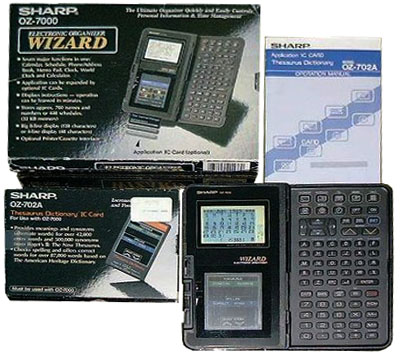

The OZ-7000, same model, only solf in the USA

User manual
