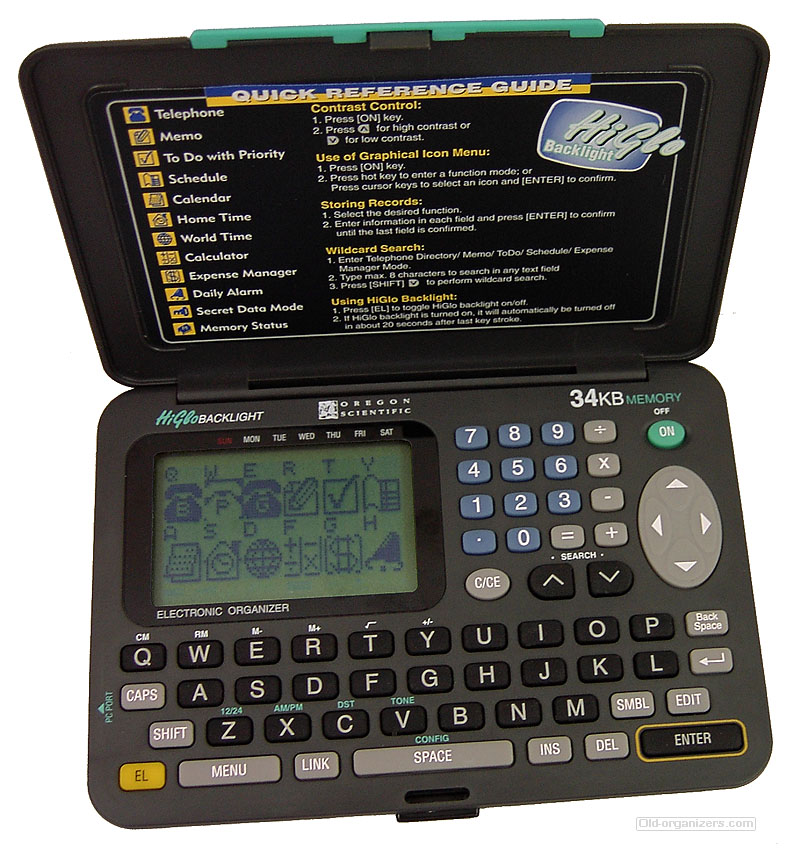

Graphic main menu

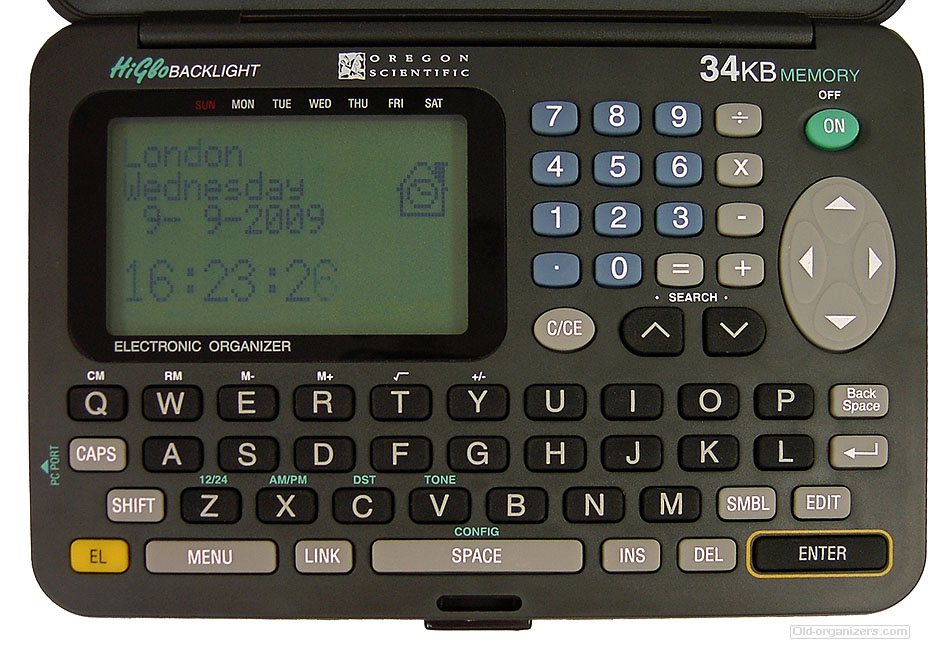

Display and keyboard close-up. Home clock function

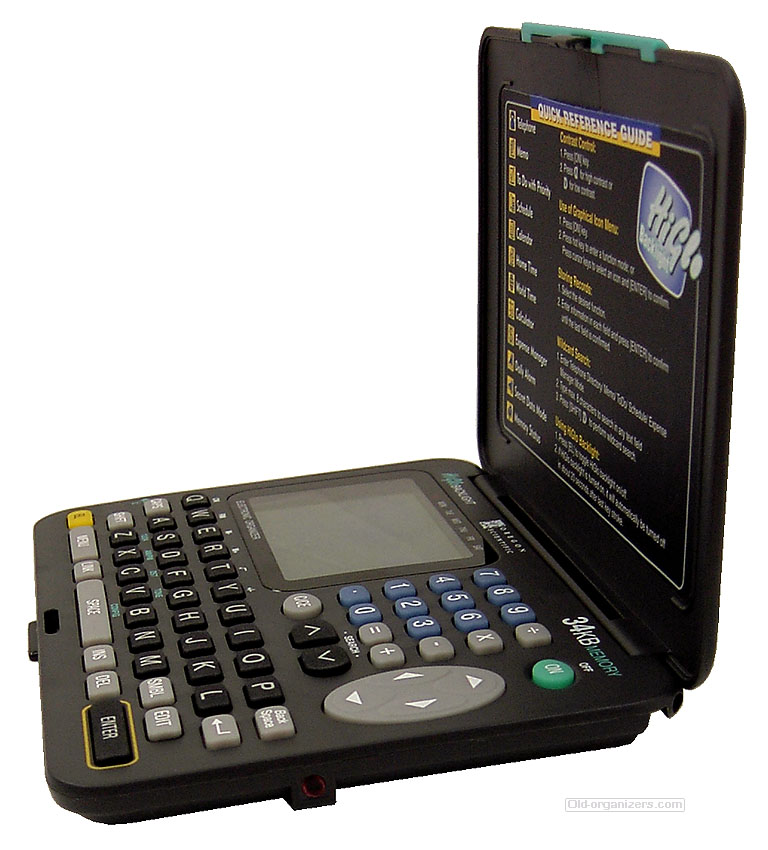

Side view

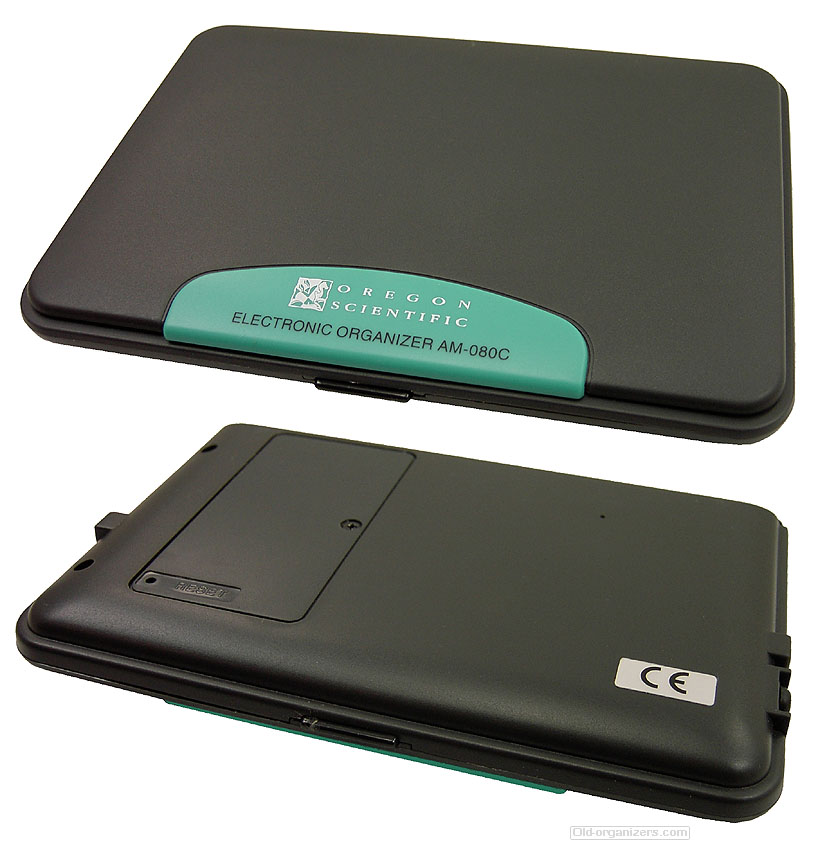

Top and back sides

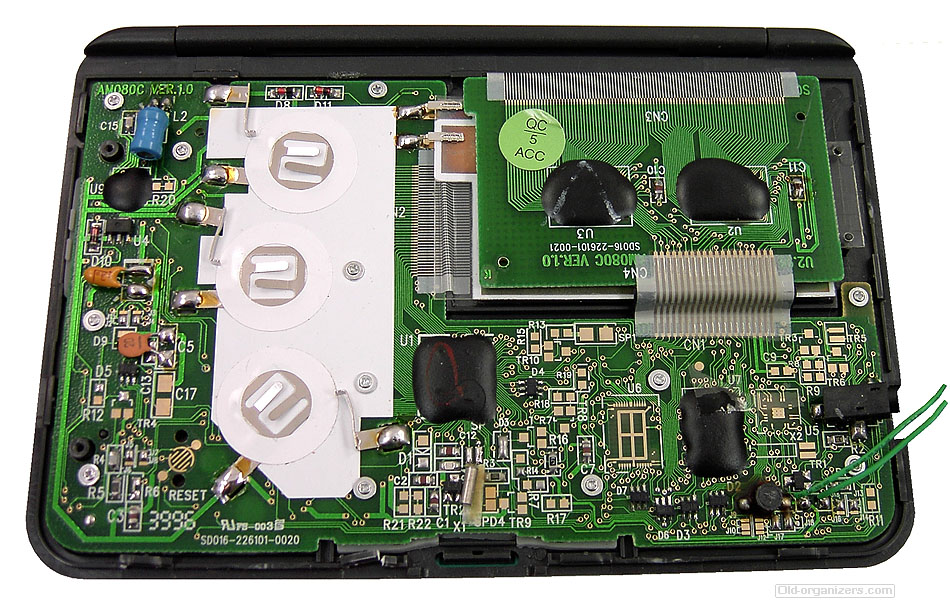

Electronic card. All-in-one controller (U1), memory chip (U7), backlight controller (U9), display chips (U2, U3)
Provision is made for a second memory chip (U6).

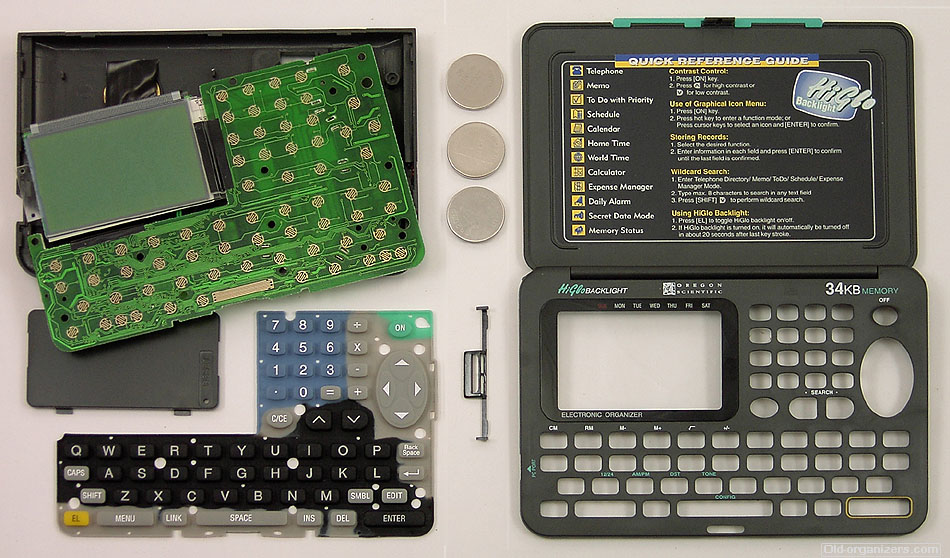

In parts
